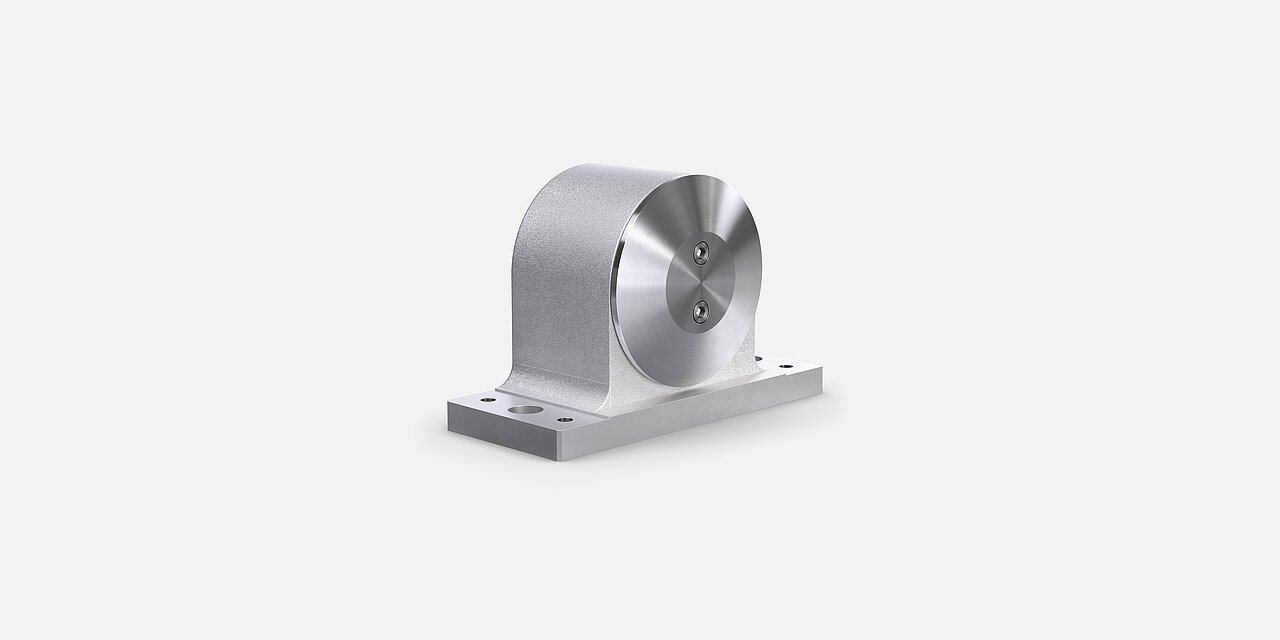

Resilient MountsAVR Series
![[Translate to English:]](/fileadmin/_processed_/c/4/csm_AVR_Series__1__95502d1e3a.jpg "[Translate to English:]")
AVR mounts are suitable primarily for free-standing gearboxes and directly coupled engine/gearbox applications in which the mounts need to absorb the torque and propeller thrust loads. The vibration damping mounts feature a rubber element can dampen axial and particularly radial vibrations, and it can absorb cardanic loads.
The fixing plates supplied are those intended for the gearbox concerned. AVR mounts are suitable for ambient temperatures of -20 °C to +70 °C.
The fixing plates supplied are those intended for the gearbox concerned. AVR mounts are suitable for ambient temperatures of -20 °C to +70 °C.
Benefits
- Semi-elastic AVR mounts are in a position to absorb radial stresses with small displacements.
- Customised application with the help of fixing plates.
- Damping of the gear noise.
- Certified by leading classification companies.
Technical Data
- Nominal load range [kN]19.00 - 70.00 kN
Application
Semielastic rubber mounts for close-coupled and freestanding gearboxes.
