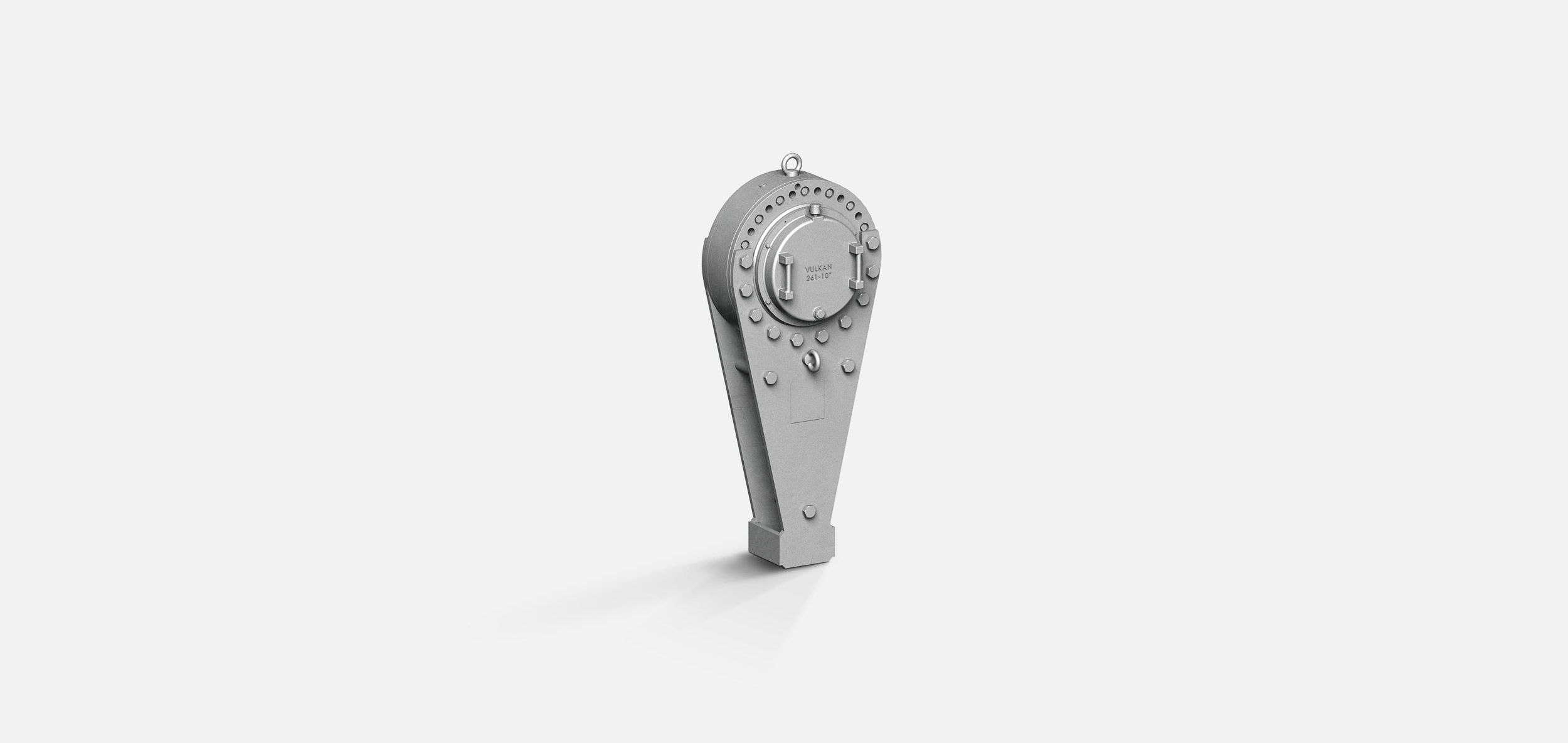

Low speed backstops

[Translate to English:]

High speed and low speed backstop with sprag lift off and roller ramps design. Available either with or without radial support bearings and a reaction torque arm.

Technical Data

  • Torque Range TKN [kNm]
    0.62 kNm - 578.00 kNm
  • Speed range [1/min]
    95.00 RPM - 7,000.00 RPM

Application

  • High speed shafts and low speed shafts of machinery driven by electric motors and requiring freewheeling, indexing or backstop functions.

Efficiency

  • High material stiffness, low material density
  • Excellent fatigue strength
  • Intrinsic low unbalance

Tailor-made Solutions

  • Adaptable bending and torsional stiffness of the shaft
  • System solution integration: composite shafting with integrated torsional flexible couplings
  • Reliable electrical isolation of the drive train

Design

  • Complete engineering and project development
  • Combination with flexible couplings is available
  • In-house testing 1:1 up to 5.000 kNm nominal torque
