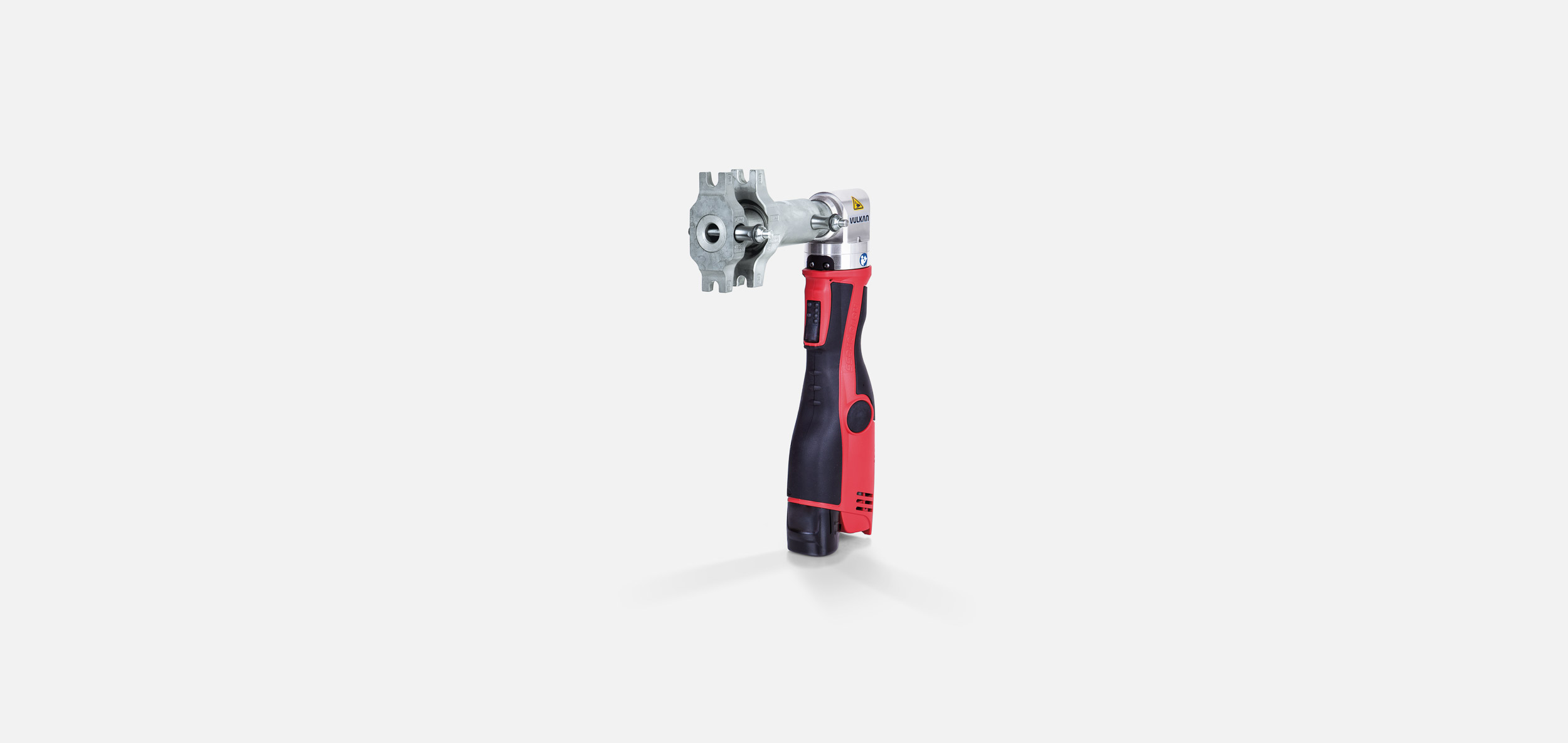

Cordless Assembly Tool LOKPRESSLOKTOOL LOKPRESS

[Translate to English:]
  • Special hydraulic valve for quick and safe assembling of LOKRING Connections of type 50.
  • Diameters: 6 to 41.3 mm (1/4" to 1 5/8")
  • Lightweight for single-hand operation.
  • Rotatable mounting head makes working in any situation easy.
  • Delivered in a robust plastic case.
  • Made in Germany!

Videos

Technical Data

    • Dimensions without rechargeable battery (H x W x L): 330 x 69 x 219 mm
    • Operating temperature: -10°C to 50°C (14°F to 122°F)
    • Power consumption: 240 W
    • Pressing force: Up to 23 kN
    • Rechargeable battery: 12V / 2.0 Ah Li-Ion
    • Recharge time: 30 to 60 min
    • Weight (incl. rechargeable battery): 2.34 kg (5.16 lb)
    • Protection class: IP20

    Application

    • Installation of HVAC systems

    Equipment

    LOKTOOL MZ-V

    • Specially developed for the LOKRING assembly
    • Patented lever mechanism for assembly with minimum effort
    • Assembly…
    go to product

    LOKRING NK Ms 50

    For connecting copper and/or steel tubes with identical tube outer diameters.

    …
    go to product

    LOKRING VH Ms

    • For additional stabilisation of the LOKRING connection under mechanical loads.
    • Supports calibration of coiled…
    go to product

    LOKPREP LT

    • Specially developed for use with LOKRING brass connectors.
    • Can be used in ambient temperatures up to 30°C…
    go to product

    LOKPREP HT

    • Specially developed for use with LOKRING brass connectors in high ambient temperatures.
    • Can be used in ambient…
    go to product

    GRATFIX N-E

    For quick and clean deburring of tubes, edges and steel plates.

    go to product

    AM-SV

    • For cleaning tube ends without scratching
    • Suitable for all surfaces
    • Solvent-resistant
    • Dimensions: 158 mm x 224…
    go to product

    Downloads
