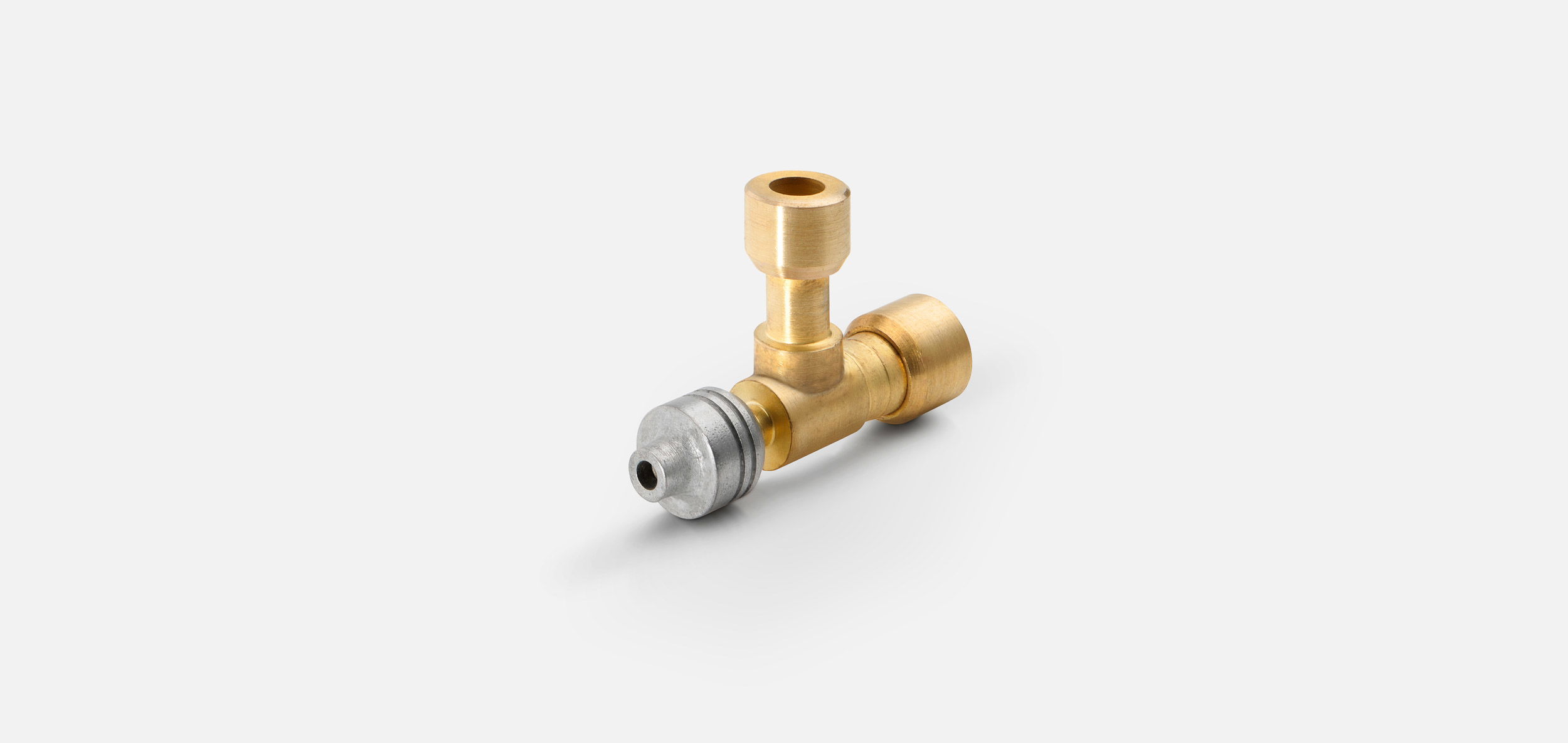

LOKRING Brass T-Connectors Type 00LOKRING NTR Ms 00

[Translate to English:]
  • For connecting copper and/or steel tubes with different tube outer diameters.
  • Allows insertion of a capillary tube into the suction line.

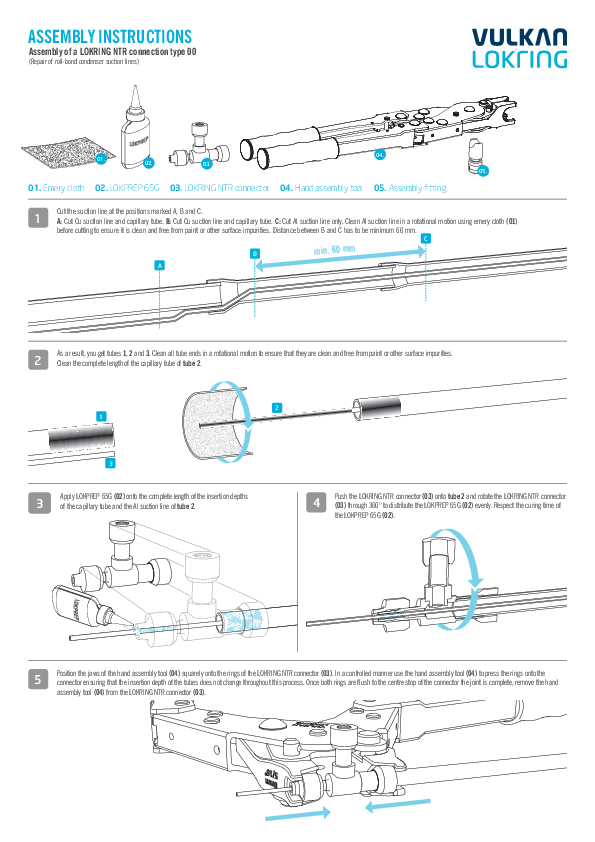

IMPORTANT: For making the assembly, the LOKTOOL NTR-8 is required.

Technical Data

    • Max. operating pressure: 25 bar (360 psi)*
    • Admissible refrigerants: Suitable for all HCs, HFCs and mixtures. Not suitable for NH3.
    • Temperature range: -50°C up to 150°C (-58°F up to 302°F)
    • Tube diameter range: 2 to 8 mm (5/64" to 5/16")
    *Solutions for higher operating pressures on request.

      Application

      • Repair of Refrigeration Appliances

      Material Combinations

      >>>Cu-Cu
      >>>Cu-St
      >>>St-St

      Equipment

      LOKTOOL HMRK-V

      • Specially developed for the LOKRING assembly.
      • Patented lever mechanism for assembly with minimum effort.
      • Assemb…
      go to product

      LOKTOOL NTR-8

      • For assembling a T-branch.
      • Suitable for LOKRING T-connectors or T-reducing connectors type 00.
      • For assembly,…
      go to product

      LOKPREP 65G

      • Specially developed for the LOKRING assembly
      • Must be used for all LOKRING assemblies
      • Compensates for any…
      go to product

      SP-SL

      • For cleaning tube ends.
      • Grain: 120
      • Dimensions: 230 mm x 280 mm
      • Highest quality from 3M.
      …
      go to product

      Downloads
