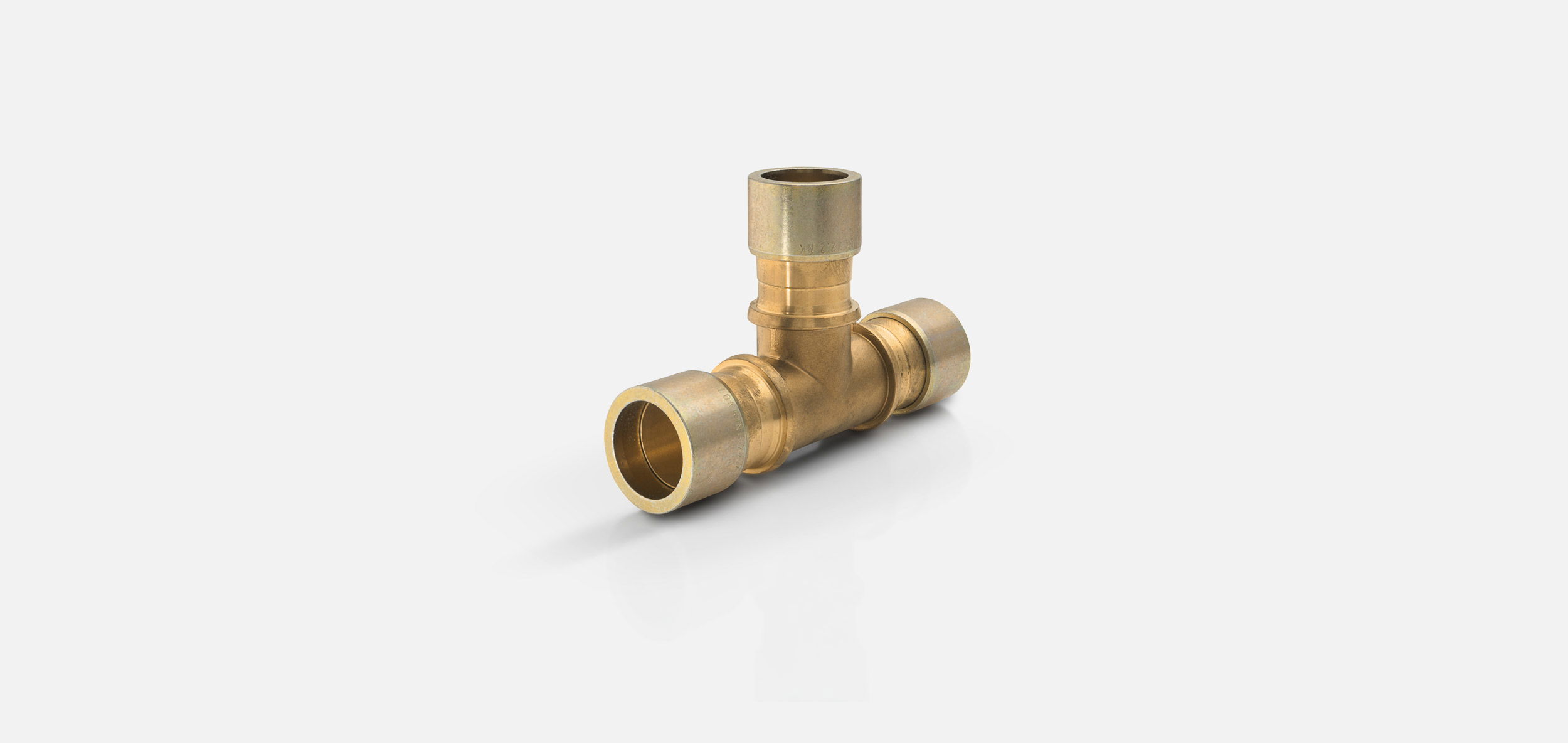

LOKRING Brass T-Connectors Type 50LOKRING NTK Ms 50

[Translate to English:]
  • T-piece for connecting copper and/or steel tubes with identical tube outer diameters.
  • In conjunction with LOKRING NRA brass reducing adaptors, T-reducing connectors can be created.

Videos

Technical Data

    • Max. operating pressure: 75 bar (1088 psi).
    • Admissible refrigerants: Suitable for all HFCs and mixtures, all HCs, R32 and CO2 (up to 75 bar). Not suitable for NH3.
    • Temperature range: -50°C up to 150°C (-58°F up to 302°F).
    • Tube diameter range: 6 to 35 mm (1/4" to 1 3/8").
    • Minimum tube wall thickness: 0.7 mm.

    Application

    • Installation of HVAC systems

    Material Combinations

    >>>Cu-Cu
    >>>Cu-St
    >>>St-St
