Leak DetectorsLOKATOR VL20-BU

[Translate to English:]

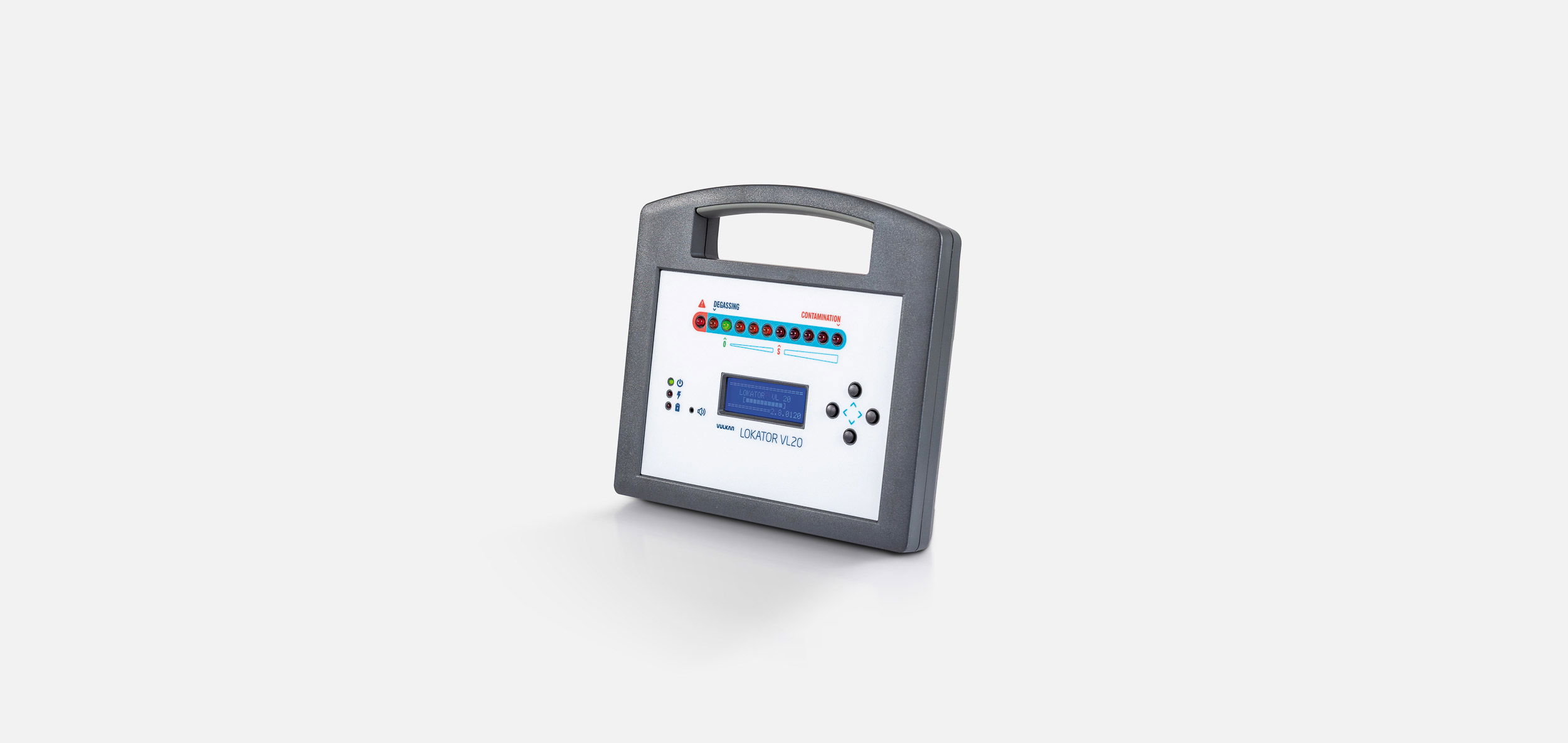

Mobile, industrial leak detector. The high flexibility of the LOKATOR VL20 allows for use with different refrigerants and for H2 tracer gas with the same probe. The unit is the perfect tool for quick and accurate leak location whatever the gas to be detected.
The simple and easy to use LOKATOR VL20 is designed for small or medium size production lines of refrigeration and A/C units. Its main advantage is to very quickly find even fine leaks. The operator can set two alarm levels or select one manually. The unit gives a clear visual and audible alarm indication as soon as the leak level is exceeded. Maintenance can be done easily on-site within a few seconds.


  • Shock-proof housing
  • Intuitive interface on a 4 line LCD
  • Easy maintenance and calibration
  • Visual indication of leaks, degassing, saturation and ambient contamination
  • Permanent self-checking of power supply, probes and connections
  • Automatic zeroing with compensation of ambient contamination
  • Audible indication of leaks


NOTE: The base unit comes without probe and without probe cable. Please select those articles separately.

Technical Data

    • Warm-up time: 180 sec.
    • Reaction time: 1 sec.
    • Operating temperature: 10°C – 40°C
    • Power supply: rechargeable battery (9 V - 1.5 A max.)
    • Battery life: 4 hours
    • L x H x D in mm: 220 x 220 x 80
    • Weight: 550 g

    Application

    • OEM | Production

    Equipment

    LOKATOR VL20-CSU-U

    • Suitable for HFC, HFO, R600a, R290, H2 tracer gas
    • Plug and play
    • Red LED indicates a leak
    • Probe consists of…
    go to product

    LOKATOR VL20-C2P6B-2.5M

    • Cable for connecting the base unit of the LOKATOR VL20 to the probe.
    • Length: 2.5 m
    go to product
