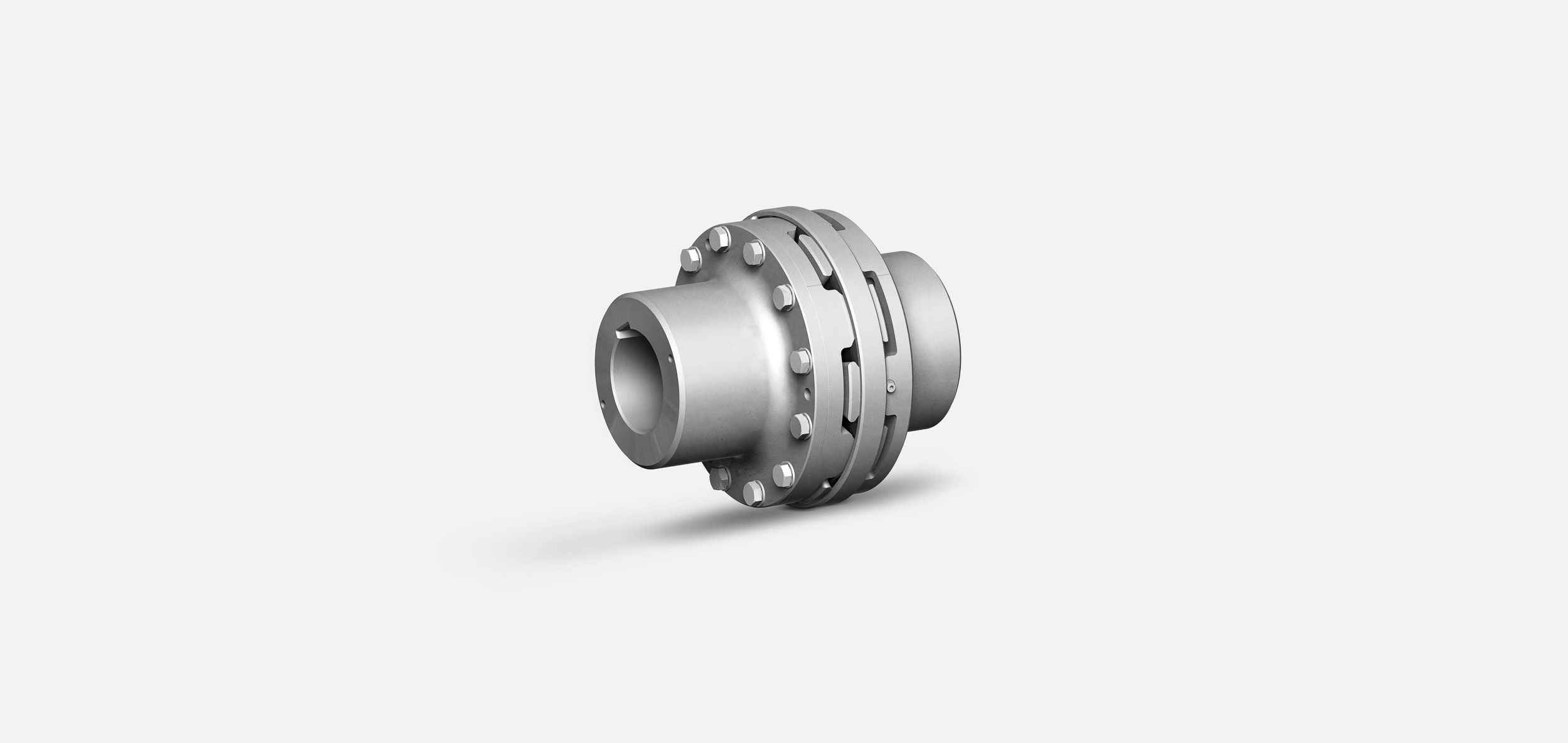

Flexible CouplingFLEXOMAX GBN

[Translate to English:]

Torsional flexible coupling that is equipped with an elastic element working in compression. Suitable for motion reversals and multidirectional flexibility.

Technical Data

  • Torque Range TKN [kNm]
    3.60 kNm - 644.40 kNm
  • Speed range [1/min]
    650.00 RPM - 7,000.00 RPM

Application

  • Low speed shaft of machinery driven by electric motor and harsh environments.

Efficiency

  • Allows for compensating axial, radial and angular misalignments
  • Limited maintenance required
  • Protects the drivetrain from shock loads

Tailor-made Solutions

  • Modular design with high customisation degree possibilities
  • Radial removability of the coupling without having to move the connected machinery
  • Possibility of integrating braking discs or pulleys within the coupling

Design

  • Available in different designs (G/GSN/GBN) - to satisfy the requirements of even the most restricted applications
  • Reverse functionality
  • Compact design
